ROV Lowrance SonarHub Housing

Sonar

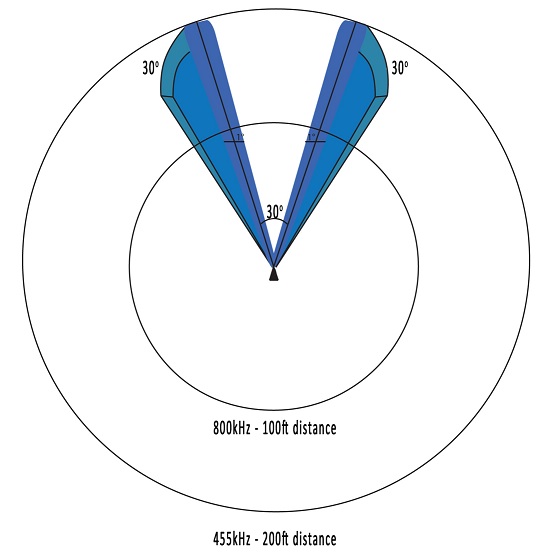

SpotlightScan transducer & Ethernet SonarHub Width 7.1 in (180 mm), Height 2.2 in (57 mm) Weight 1.5 lbs, Power 9-32 vDC min-max Max .8A at 13.8 v Sonar Hub Specs pdf
SpotlightScan transducer & Ethernet SonarHub Width 7.1 in (180 mm), Height 2.2 in (57 mm) Weight 1.5 lbs, Power 9-32 vDC min-max Max .8A at 13.8 v Sonar Hub Specs pdf

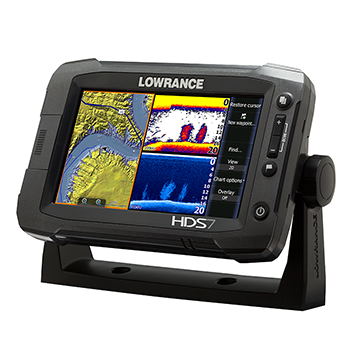

HDS-7 Gen2 Touch $1000 Width 8.44″, Depth 3.24″, Height 5.76″ 12 W (0.9 A @ 13 V DC) Specs
HDS-7 Gen2 Touch $1000 Width 8.44″, Depth 3.24″, Height 5.76″ 12 W (0.9 A @ 13 V DC) Specs
Sonar photo 3
Lowrance GoFree WiFi shares the display with iPad or Galaxy tablets. $200
Lowrance GoFree WiFi shares the display with iPad or Galaxy tablets. $200

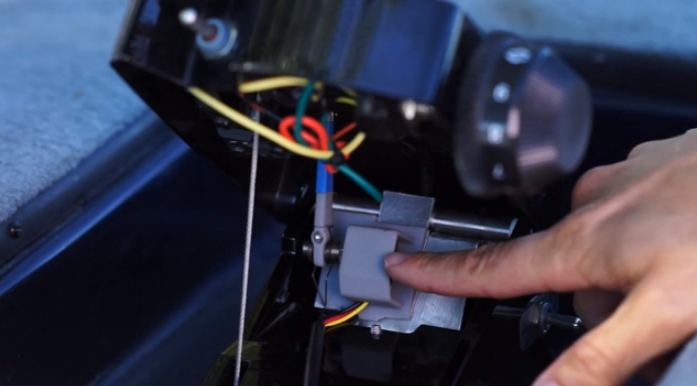

NMEA 2000 trolling motor foot control sensor
NMEA 2000 trolling motor foot control sensor

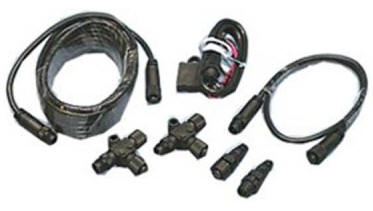

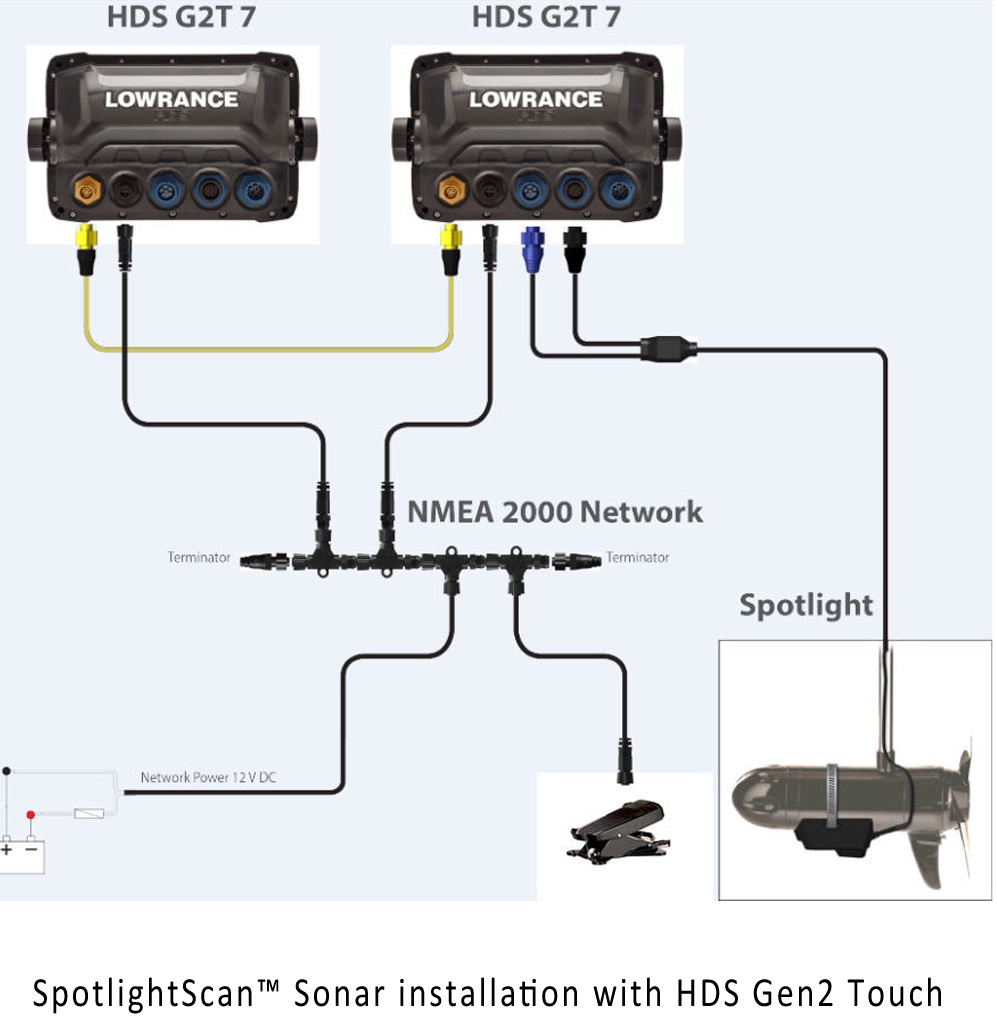

NMEA 2000 Starter Kit $70
NMEA 2000 Starter Kit $70
Sonar photo 7

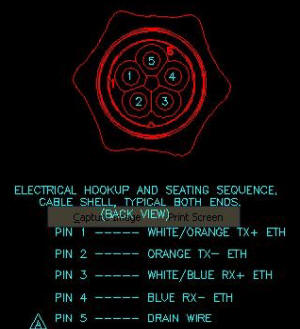

Lowrance Ethernet Pinout, Back of plug view.
Lowrance Ethernet Pinout, Back of plug view.
Sonar photo 9
655-IM03TS DPDT Relay
655-IM03TS DPDT Relay

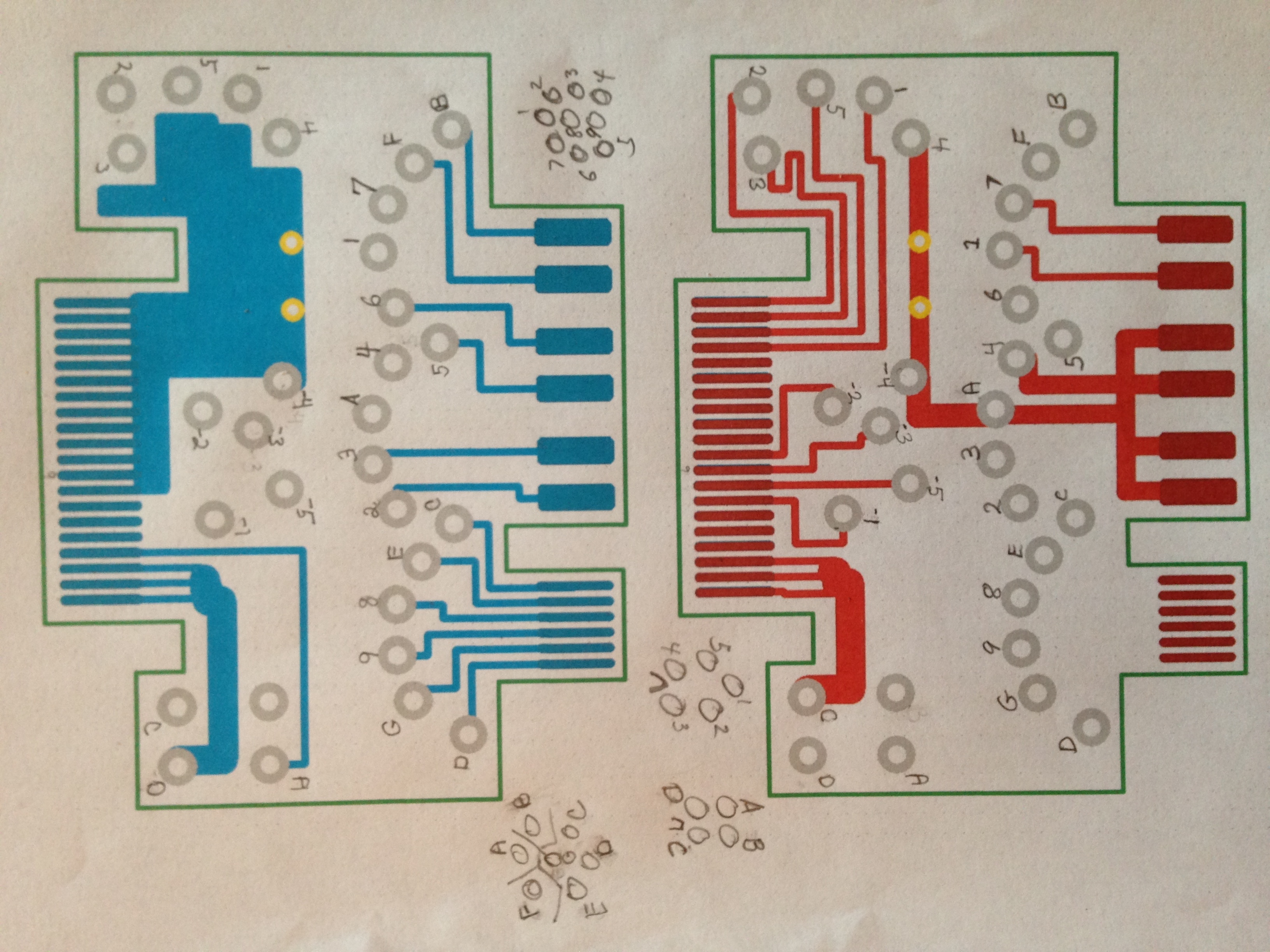

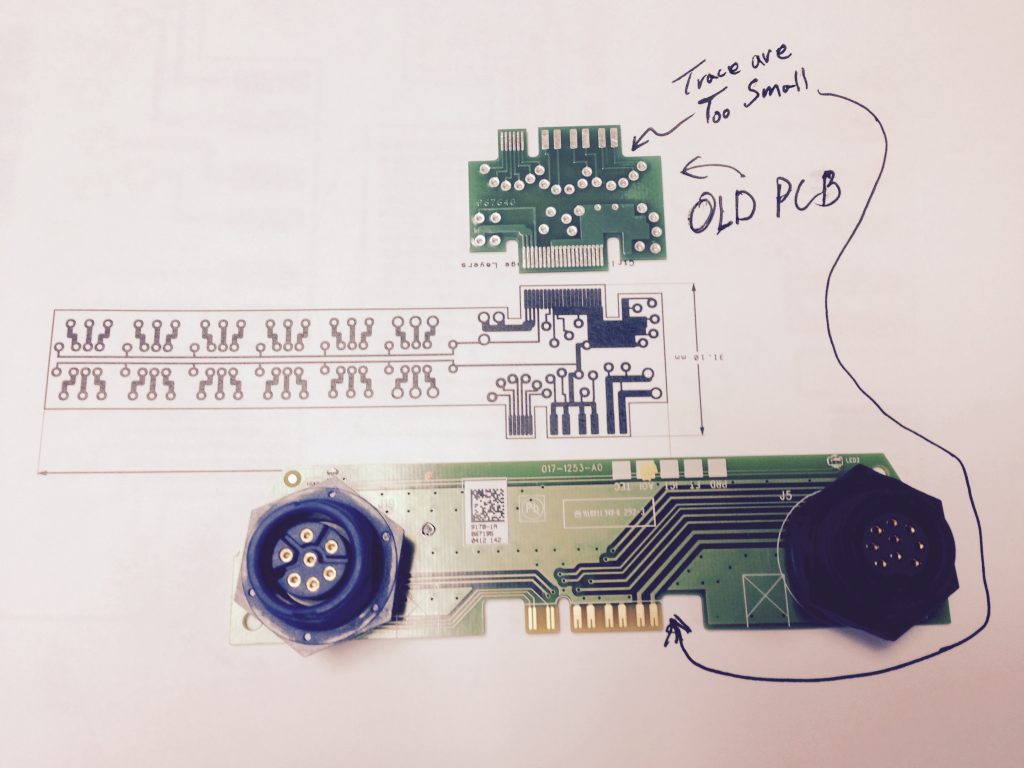

New SonarHub Interface PCB design
New SonarHub Interface PCB design

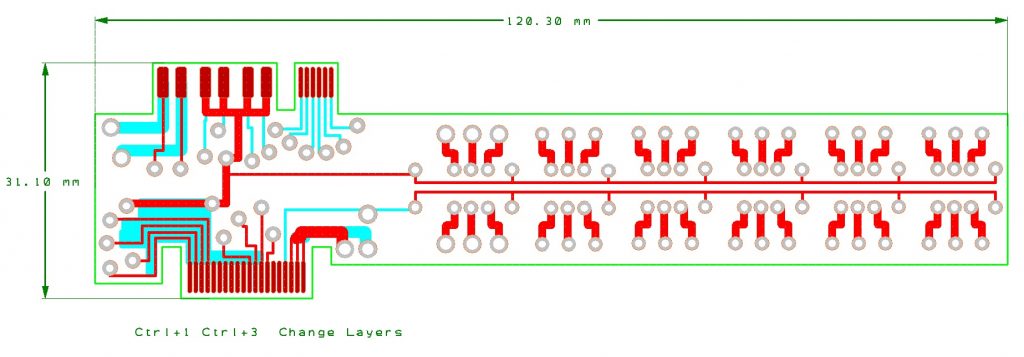

sonarhub-connectors-v4
sonarhub-connectors-v4
